Slides for metal drawer and cabinet applications

Knape & Vogt brings its full design, development and manufacturing support to OEMS with these ball-bearing slides for metal drawer applications. Choose medium- or heavy-duty full extension or over travel slides in lengths ranging from 14" to 28" for box or file drawers, tool box applications and more. A built-in system of belt-loops and bayonets means tool less installation on these handed, side-mount slides with lever release or butterfly release.

KV 8420 medium-duty full extension slide

• Class: Medium Duty
• Type: Ball-bearing
• Load class: 100 lb.
• Mounting: Side
• Width: .50"/12.7mm
• Clearance: .50" +.03" -0
• Height: 1.79"/45.5mm
• Extension: Full
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 24"
• Disconnect: Lever release
• Finish: Anochrome
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"

KV 8425 medium-duty over travel slide

• Class: Medium Duty
• Type: Ball-bearing
• Load class: 90 lb.
• Mounting: Side
• Width: .50"/12.7mm
• Clearance: .50" +.03" -0
• Height: 1.79"/45.5mm
• Extension: Over travel
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 24"
• Disconnect: Lever release
• Finish: Anochrome
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"

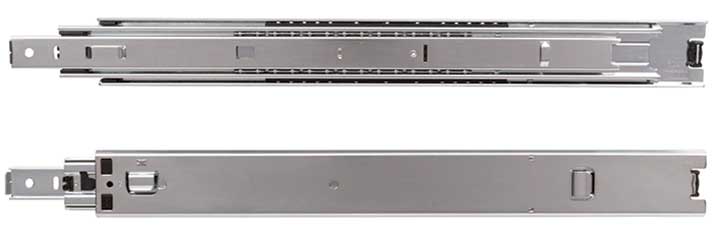

KV 8620 heavy-duty full extension slide

• Class: Heavy Duty
• Type: Ball-bearing
• Load class: 150 lb.
• Mounting: Side
• Width: .50"/12.9mm
• Clearance: .51" +.01" -0
• Height: 1.98"/50.4mm
• Extension: Full
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 36"
• Disconnect: Butterfly release
• Finish: Zinc
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"

KV 8625 heavy-duty over travel slide

• Class: Heavy Duty
• Type: Ball-bearing
• Load class: 140 lb.
• Mounting: Side
• Width: .50"/12.9mm
• Clearance: .51" +.01" -0
• Height: 1.98"/50.4mm
• Extension: Over Travel
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 36"
• Disconnect: Butterfly release
• Finish: Zinc
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"

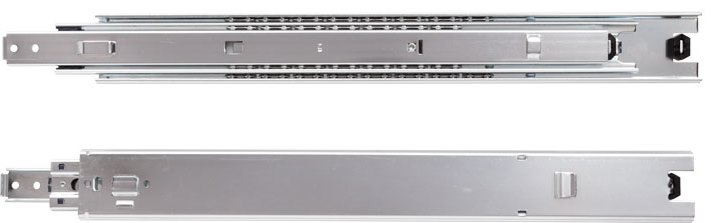

KV 8820 heavy-duty full extension slide

• Class: Heavy Duty
• Type: Ball-bearing
• Load class: 200 lb.
• Mounting: Side
• Width: .50"/12.9mm
• Clearance:  .75" + .03" - 0"
• Height: 2.09" [53mm]
• Extension: Full
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 42"
• Disconnect: Lever release
• Finish: Zinc
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"

KV 8825 heavy-duty over travel slide

• Class: Heavy Duty
• Type: Ball-bearing
• Load class: 200 lb.
• Mounting: Side
• Width: .50"/12.9mm
• Clearance:  .75" + .03" - 0"
• Height: 2.09" [53mm]
• Extension: Over Travel
• Open/close features: Hold-in anti-rebound
• Material: Steel
• Recommended drawer width: 42"
• Disconnect: Lever release
• Finish: Zinc
• Lengths: 14" 16" 18" 20" 22" 24" 26" 28"
